Spreading Wings S1000 Premium

Introduzione

Nuova Uscita S1000

The S1000 has been designed for high level professional aerial photography and cinematography. It comes with retractable landing gear, as well as folding frame arms and propellers to minimize storage space.

Maggiori dettagli

3 390,00 €


Avvisami quando disponibile

Questo prodotto non è più disponibile

DJIS1000

» Aggiungi alla mia lista dei desideri

New Release—S1000

The S1000 has been specially designed for high level professional aerial photography and cinematography. It comes with retractable landing gear, as well as folding frame arms and propellers to minimize storage space. Every detail has been designed with the needs of creators in mind, helping them to realize their vision while its light weight offers them a longer flight time.




FEATURE



Safe and stable

The S1000’s V type mixer design provides large amounts of propulsion while improving power efficiency. Combined with a DJI flight controllers like the A2, it is guaranteed to remain stable even with the loss of a rotor.


Integrated into the center frame is a power distribution system using our patented coaxial cable connector.

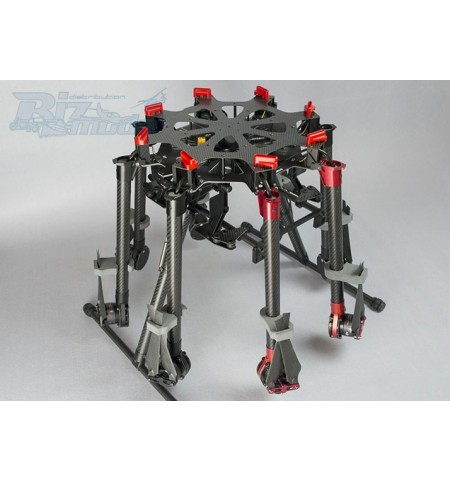

Professional Octocopter

Weighing approximately 4kg with a maximum takeoff weight of about 10kg, the S1000 can easily carry equipment as heavy as a 5D mark 3. Used with a 6S 15000mAh battery it can fly for up to 15 minutes.






Gimbal and battery are mounted to the same bracket, with dampers placed between the bracket and the frame. This significantly reduces high-frequency vibrations and makes shots clearer and sharper. The battery tray's position also makes it more stable and convenient for mounting and dismounting.




Supports all Zenmuse Z15 gimbal systems. Optimized for A2


3.PNGimage

Optimized for A2 wiring and installation, connecting an A2 flight controller and setting flight parameters is easy. The A2's antenna is kept away from any carbon fiber or metal, ensuring a better signal.





Portable and easy to use
4.PNGimage

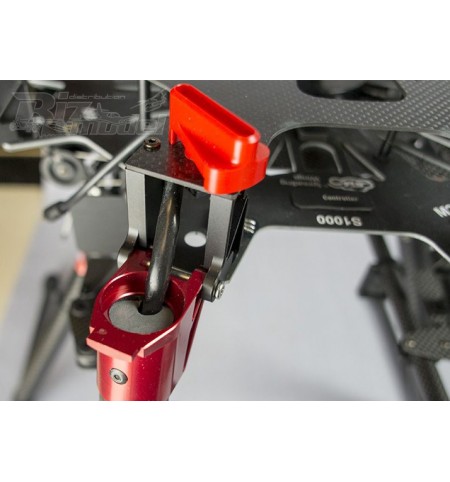

All eight arms can be completely folded down and the 1552 folding propeller can be tucked away, minimizing the S1000’s size for transportation.



To fly, simply lift the frame arms up, lock them in place with the red clips and power up the system. This greatly saves on pre-flight prep time.



Each frame arm has a built-in 40A electronic speed controller (ESC). When combined with its 4114 pro motor and high performance 1552 folding propellers, it is capable of a maximum thrust of 2.5Kg.



PARAMETER:

Frame
Diagonal Wheelbase1045mm
Frame Arm Length386mm
Frame Arm Weight (with Motor, ESC, Propeller )325g
Center Frame Diameter332mm
Center Frame Weight (with Landing Gear Mounting Base, Servos)1330g
Landing Gear Size460mm(Length)×511mm(Width)×350mm(Height) (Top width: 155 mm)
Motor
Stator Size41×14mm
kV400rpm/V
Max Power500W
Weight (with Cooling Fan)158g
ESC
Current41×40A
Voltage6S LiPo
Signal Frequency30Hz ~ 450Hz
Drive PWM Frequency8KHz
Weight (with Radiators)35g
Foldable Propeller (1552/1552R)
Material41×High strength performance engineered plastics
Size15×5.2inch
Weight13g
Flight Parameters
Takeoff Weight6.0Kg ~ 11.0Kg
Total Weight4.2Kg
Power BatteryLiPo (6S, 10000mAh~20000mAh, 15C(Min)
Max Power Consumption4000W
Hovering Power Consumption1500W (@9.5Kg Takeoff Weight)
Hovering Time15min (@15000mAh& 9.5Kg Takeoff Weight)
Working Environment Temperature-10°C ~ +40°C
