REAKTOR BRUSHLESS COMBO

Introduzione

The Reaktor Brushless Combo is the first time such a high level of performance and features have been offered at this incredible value.

Maggiori dettagli

115,00 €


Avvisami quando disponibile

Questo prodotto non è più disponibile

RDNA0023

» Aggiungi alla mia lista dei desideri

Features

  • 3s LiPo w/LVC LiPo Ready
  • 540 3000kV, 2P, SL Motor
  • Waterproof
  • Limited Programming
  • Thermal Protection
  • Overload Protection
  • 4x4 SC ready
  • Tam Style Battery Plug


Overview

The Radient Reaktor brushless ESC and motor set a new standard for value and performance. Never before has a brushless combo been offered with this high of performance and features at this incredible value. This 3500kV system is Ideal for 2wd 1/10th scale vehicles but more than capable of powering a Helion Dominus SC and TR! Equipped with programmable LVC, and reverse or brake modes, this ESC was built for the beginner but engineered to last. Capable of running 2s and 3s LiPo batteries, the Reaktor system feeds your craving for more performance when you outgrow the typical included NiMH batteries. Upgrade your vehicle with a Radient Reaktor system and feel the power!



Specifications

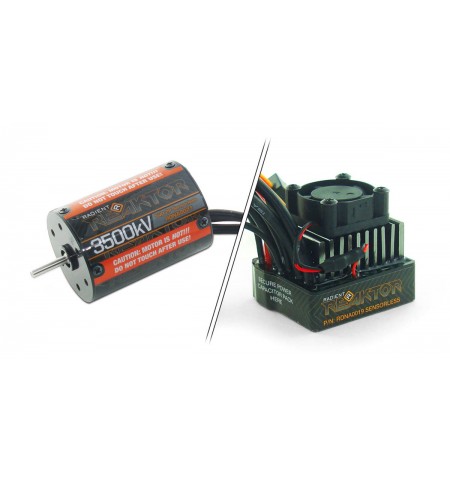

Name of Product: Reaktor Brushless Combo 3500kV/35A-3RSL
Product Description: Waterproof Brushless ESC and motor combo

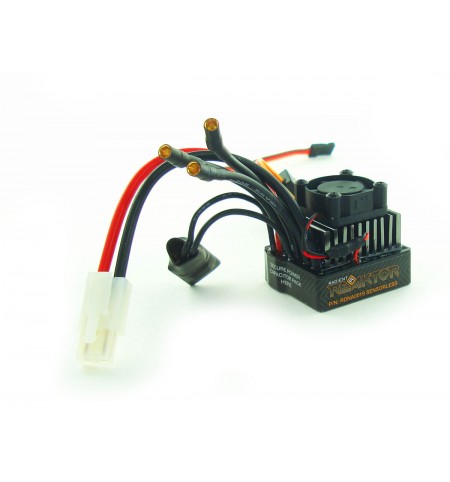

ESC type: 35A Brushless, sensorless

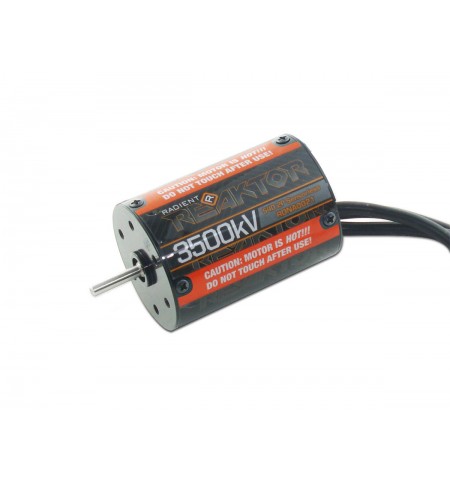

Motor Type: 540 2-pole, sensorless, 3500kV, steel can
ESC battery compatibility: up to 3s LiPo or 8 cell NiMH
LVC mode: Yes (user can set OFF, NiMH, or LiPO)
ESC current rating: 30A Continuous 35A Peak
ESC fan: Built in port, supports 25mm fan on ESC
Motor fan: Not included, can run off of ESC
Battery connector: Tamiya Type with gold plated bullets
Motor connectors: 3.5mm gold bullets
Waterproof: Yes
Programmable: Limited (LVC modes, Reverse, on/off)
Receiver lead length: 225mm (8.85in)
Motor wire lead length: ESC: 72mm (2.83in) Motor: 190mm (7.48in)
Switch mount: No

Case mount: No
ESC thermal protection: Yes
ESC overload protection: Yes
ESC Width x Depth x Height: 42x38x27mm (1.65x1.50x1.06in)
ESC Weight: 81g
Motor thermal protection: No
Motor Diameter x Length from Mount: 36x54mm (1.42x2.13in)
Motor Shaft diameter: 3.18mm (0.125in)
Motor Shaft length from mount: 17mm (0.67in)
Motor Shaft length exposed: 12.5mm (0.49in)
Minimum Age Recommendation: 14yr+
Experience Level: Beginner/Novice
Is Assembly Required: No
Assembly Time: N/A
Preparation Time: N/A
