The Phantom FC40 is the beloved Phantom, all grown up. It comes with its own built in DJI designed smart camera with 720p/30fps HD video support, and iOS or Android app control. Using a 2.4G Wi-Fi connection, it provides a full FPV experience at up to 100m. It’s the ideal choice for those getting started with aerial cinematography.

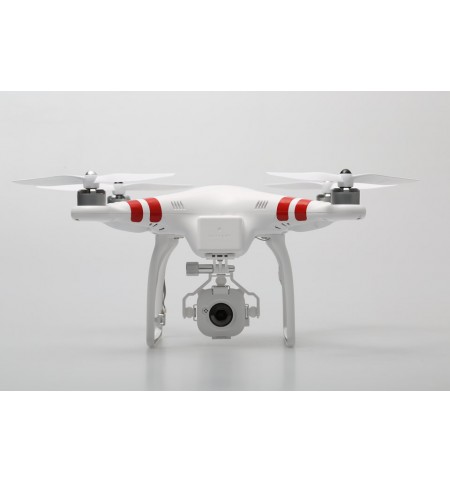

PHANTOM FC40
The Phantom FC40 is the beloved Phantom, all grown up. It comes with its own built in DJI designed smart camera with 720p/30fps HD video support, and iOS or Android app control. Using a 2.4G Wi-Fi connection, it provides a full FPV experience at up to 100m. It’s the ideal choice for those getting started with aerial cinematography. A compact and highly integrated ready-to-fly quadrotor that’s small enough to fit in a backpack.
More importantly, it features a new 5.8GHz remote control which will not interfere with the 2.4G Wi-Fi when flying.
FC40 CAMERA

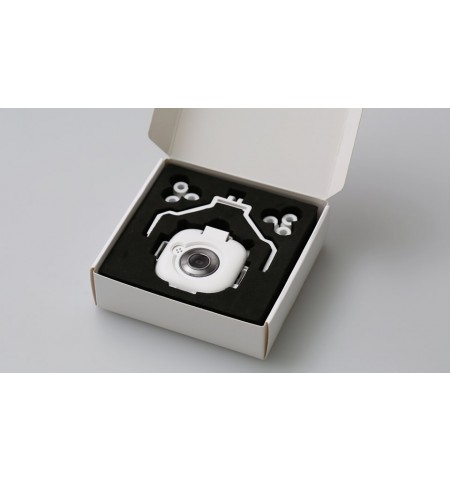

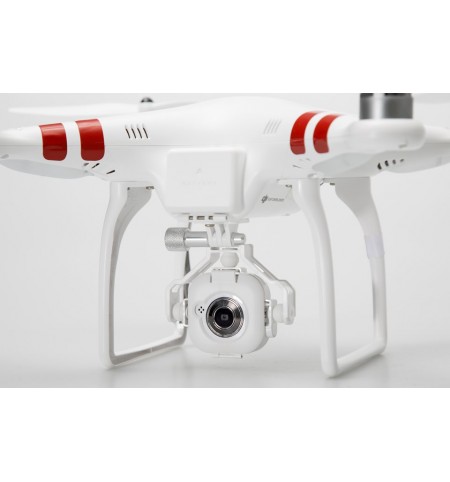

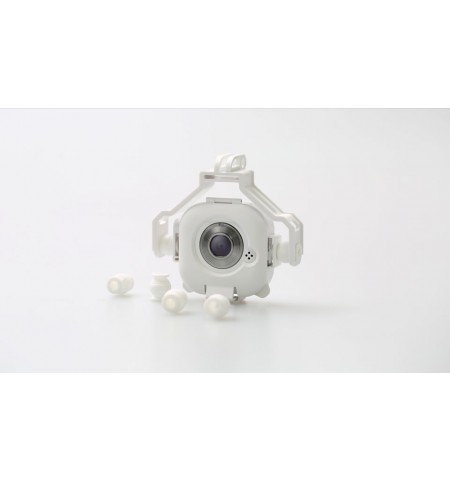

Mount the FC40 or other lightweight cameras on your Phantom to shoot your holidays from a whole new angle.
DJI FC40 APP
This App enables you to remotely control the FC40 camera installed on DJI PHANTOM 1, including photo capturing, video recording, album management, etc.
GENERAL FEATURES
With new 5.8G Remote Control and Receiver. See All Phantom Features MORE
Featherweight 2.4G Wi-Fi Camera With 720p/30fps HD Video
User Friendly Smartphone App For First Person View(FPV)
10x Digital Zoom Function While In FPV
Low Latency Live Preview
Remote Control Mobile Phone Capture
Capture Images & Record Video While Flying
In-phone Album Synchronization
BASIC PARAMETERS
Operating Temperature:
-10°C ~ 50°C
Power Consumption:
3.12W
Take-off Weight:
<1200g
Hovering Accuracy (GPS Mode):
Vertical: ± 0.8m
Horizontal: ± 2.5m
Max Yaw Angular Velocity:
200°/s
Max Tilt Angle:
35°
Max Ascent / Descent Speed:
±6m/s
Max Flight Velocity:
10m/s
Diagonal distance (motor center to motor center):
350mm
Phantom Prop Guard:
Weight(Single):18.7g
Size(Single): Angle(155.0°) Radius(112.32mm)
Whole Size with Four Prop Guards: 575.5mm
ESC SOUND INTRODUCTION
Ready:
♪1234567
Throttle stick is not at bottom:
BBBBBB…
Input signal abnormal:
B——–B——–B…
Input voltage abnormal:
BB—BB—BB—BB…
CHARGER & BATTERY PARAMETERS
Charger AC Input:
100-240V
Charge Current:
1A/2A/3A
Current Drain for Balancing:
200mA
Power:
20W
Battery Type:
LiPo
TRANSMITTER
Working Frequency:
5.8GHz ISM
Communication Distance （open area）:
CE: 300m; FCC: 500m
Receiver Sensitivity （1%PER）:
-93dBm
Transmitter Power:
CE: 25mw; FCC: 125mw
Working Current /Voltage:
80 mA@6V
Battery:
4 AA Batteries

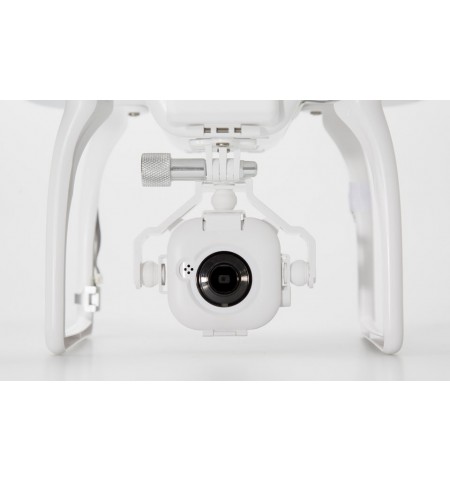

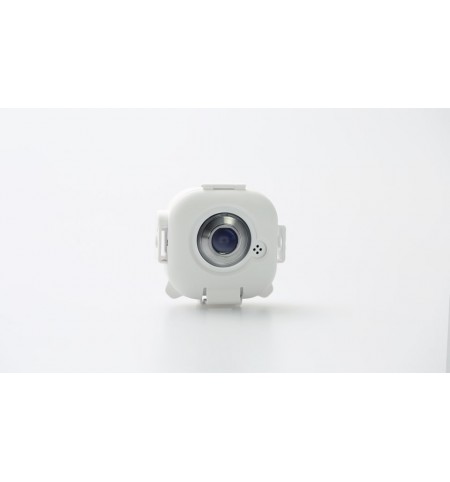

FC40 CAMERA
Image Sensor:
HD 720p/30fps
Lens:
Aperture F2.2
FOV:
100 Degree Wide Angle
Focal Range:
25cm-infinity
Wireless:
IEEE 802.11 b/g Compliance
Wireless Mode:
Direct Mode
Mobile Wi-Fi Video Size:
WQVGA
Battery:
Built-in 700 mAh Li-on Battery
